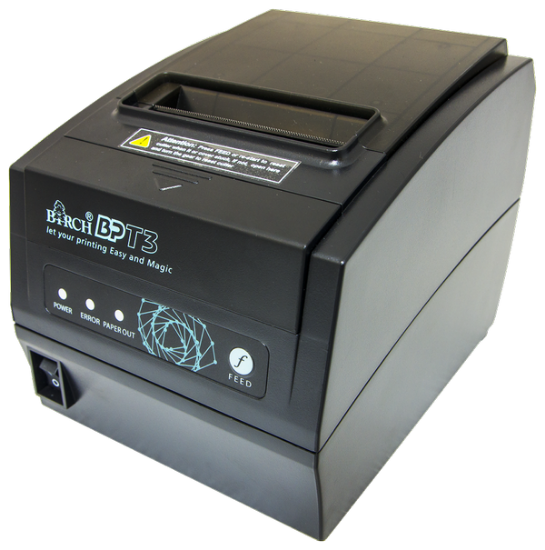

BIRCH BP-T3BH 3" Thermal Direct Receipt Printer
BP-T3 is an absolute good for your receipt printing with
260mm/second print speed. It is built with LAN + USB HID +
RS232 interface , It meets nearly most application environments
Old price:
166.00 JOD
139.00 JOD
Wholly immerse in receipt printing with 3-in-1 interface devices Ordering Information: BP-T3BH: 80mm thermal receipt printer, w/Auto Cutter, 260mm print speed, RS232 +USB HID +LAN interface, Black, w/USB and RS232 cable as standard BP-T3BH 80mm thermal receipt printer Affordable and Powerful
1. 3-in-1 interface with cables of RS232 and USB as bundled BP-T3 is an absolute good for your receipt printing with 260mm/second print speed. It is built with LAN + USB HID + RS232 (3-in-1 interface) and included with RS232 + USB cables. It meets nearly most application working environments with no interface change needed. It is simple and easy.
2. Supports Multiple interface languages BP-T3 supports international languages changes by the utility selected.
3. QR Code (2D) supported Besides the general and popular 1D barcode symbologies printings supported on BP-T3, BP-T3 already built-in QR code printing function, which is the popular applications in the market.
4. Powerful drivers and OPOS BP-T3 is with the powerful drivers to support your working OS environments (Windows 9X/ME/2000/XP/NT/Vista, Windows 7/8 and Linux). Graphic printing speed can be increased from 27mm/second to 100mm/second by driver mode print speed with DIP SWITCH set (SW-8) OPOS driver is available.
5. NV Flash Buffer BP-T3 built-in 256K bytes NV Flash buffer to support logo downloading on your receipt printing, and it is helpful to your receipt printing with more attractive images.
Specifications
Model Numbers |
BP-T3BH |
Printer |
Printing Method |
Direct Thermal |
Mechanism |
Max Print Width |
79.5mm±0.5mm |
Effective Print Width |
72mm |
Character Size |
Font A: 12x24 dots ; Font B: 9x17 dots |
Character per line |
Font A: 48 columns ; Font B: 64 columns |
Printing Speed |
260mm/sec |
Printer Head |
Printer Density Life |
576 dots, 203 dpi, 100KM |
Print Font |
ASCII code |
13 international character set |
Chinese |
Big 5/GB 123 |
Inter Buffer |
256KB for NV Flash buffer 128KB for data receive buffer |
Interface |
Serial Port |
Dsub 9 pin female connector, default with 9600 or up to 115200 bps baud-rate (straight) |
USB Port |
USB 2.0 full-speed |
Ethernet |
10/100Base-T |
Cash Drawer Prot |
DC 24V/1A, 6 wires RJ-11 socket |
Barcode |
1D: UPC-A/UPC-E/JAN13(EAN13), JAN8(EAN8), CODE39, Interleaved 2of 5, CODABAR, CODE93, CODE128
2D: QR Code
|
Dimension |
185(L) x 140(W) x 134mm (H) |
Weight |
1.5Kgs (without cable) |
Environment |
Operating |
0℃ – 50℃; 10% RH – 80% RH, |
Storage |
-20℃ – 60℃; 10% RH – 90% RH |
Power supply |
Input |
100V AC – 220V AC, 50-60Hz |
Output |
+24V DC/ 2.5A |
Print commands |
ESC/POS print commands set |
Paper |
Paper width |
79.5±0.5mm |
Roll diameter |
Max. 83mm |
Paper thickness |
0.06-0.08mm |
Auto Cutter |
Life span: 1,000,000 times |
