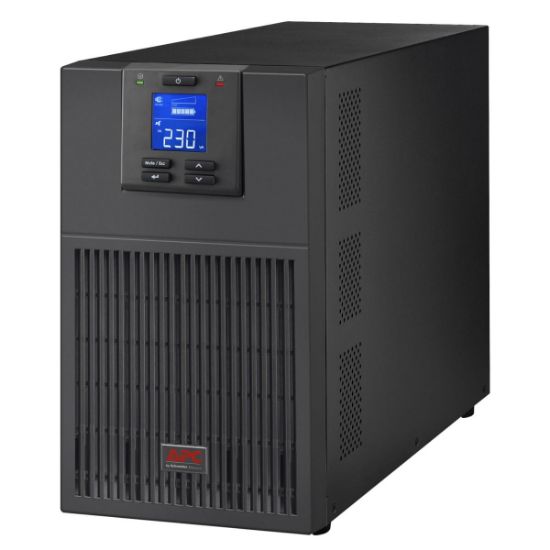

Picture of APC EASY UPS SRV 3000VA 230V

APC EASY UPS SRV 3000VA 230V

This 3kVA double-conversion on-line tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with IEC 320
Manufacturer: APC Schneider
SKU: SRV3KI
Old price: 525.00 JOD
510.00 JOD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Output

Max Configurable Power (Watts)
2.4kWatts / 3.0kVA
Efficiency at Full Load
88.0 %
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Other Output Voltages
220, 240
Load Crest Factor
3 : 1
Topology
Double Conversion Online
Waveform type
Sine wave
Transfer Time
4ms typical
Bypass
Internal Bypass (Automatic and Manual)

Input

Input frequency
40 - 70 Hz
Input voltage range for main operations
160 - 280V
Number of Power Cords
1
Efficiency at Full Load
88.0 %
Other Input Voltages
220, 240

Batteries & Runtime

Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
4hour(s)
Battery Charge Power (Watts)
118Watts
Battery Volt-Amp-Hour Capacity
473

Communications & Management

Interface Port(s)
DB-9 RS-232, Smart-Slot, USB
Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO)
--
Available SmartSlot™ Interface Quantity
1

Surge Protection and Filtering

Surge energy rating
600Joules

Physical

Maximum Height
336MM, 33.6CM
Maximum Width
190MM, 19.0CM
Maximum Depth
425MM, 42.5CM
Net Weight
26.8KG
Shipping weight
29.0KG
Shipping Height
465MM, 46.5CM
Shipping Width
325MM, 32.5CM
Shipping Depth
565MM, 56.5CM
Color
Black

Environmental

Operating Temperature
0 - 40 °C
Operating Relative Humidity
0 - 95 (non-condensing) %
Operating Elevation
0-3000meters

PRODUCT OVERVIEW
Power Rating3000VA/1200W
Input Voltage230V
Output Voltage230V
INTERFACES/PORTS
Control Panel-
MISCELLANEOUS
Listings-
TopologyDouble conversion
After Sales Support
Warranty1 Year
