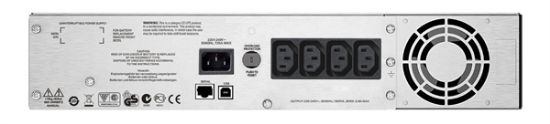

APC Smart-UPS C 1000VA 2U Rack mountable LCD

APC Smart-UPS C 1000VA 2U Rack mountable LCD

• Battery-protected and surge-only outlets reserves power capacity and run time for connected equipment
• Network manageable Provides remote power management of the UPS over the network
• LED status indicators quickly understand unit and power status with visual indicators
• Hot-swappable batteries ensures clean, uninterrupted power to protected equipment while batteries are being replaced
• Adjustable voltage-transfer points Maximizes useful battery life by widening the input voltage

Output

• Output power capacity
  600 Watts / 1.0 kVA
• Max Configurable Power (Watts)
  600 Watts / 1.0 kVA
• Nominal Output Voltage
  230V
• Output Voltage Distortion
  Less than 5% at full load
• Output Frequency (sync to mains)
  50/60Hz +/- 3 Hz
• Topology
  Line Interactive
• Waveform type
  Sine wave
• Output Connections
  (8) IEC 320 C13 (Battery Backup)

Input

• Nominal Input Voltage
  230V
• Input frequency
  50/60 Hz +/- 3 Hz (auto sensing)
• Input Connections
  IEC-320 C14
• Input voltage range for main operations
  180 - 287 V
• Input voltage adjustable range for mains operation
  170 - 300 V
• Other Input Voltages
  220, 240

Batteries & Runtime

• Battery type
  Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Typical recharge time
  3 hour(s)
• Replacement Battery
  APCRBC142
• RBC Quantity
  1
• Battery Volt-Amp-Hour Capacity
  170
• Runtime
  View Runtime Graph
  View Runtime Chart
• Efficiency
  View Efficiency Graph

Communications & Management

• Interface Port(s)
  USB
• Control panel
  Multi-function LCD status and control console
• Audible Alarm
  Alarm when on battery : distinctive low battery alarm : configurable delays
• Emergency Power Off (EPO)
  --

Surge Protection and Filtering

• Surge energy rating
  455 Joules
• Filtering
  Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

• Maximum Height
  219 , 21.9 cm
• Maximum Width
  171 , 17.1 cm
• Maximum Depth
  439 , 43.9 cm
• Net Weight
  17.27 kg
• Shipping weight
  19.55 kg
• Shipping Height
  376 , 37.6 cm
• Shipping Width
  328 , 32.8 cm
• Shipping Depth
  595 , 59.5 cm
• Color
  Black
• Master Carton Units
  1.0
• Units per Pallet
  18.0

Environmental

• Operating Environment
  0 - 40 °C
• Operating Relative Humidity
  0 - 95 %
• Operating Elevation
  0-3000 meters
• Storage Temperature
  -15 - 45 °C
• Storage Relative Humidity
  0 - 95 %
• Storage Elevation
  0-15000 meters
• Audible noise at 1 meter from surface of unit
  41.0 dBA
• Online thermal dissipation
  100.0 BTU/hr

Conformance
