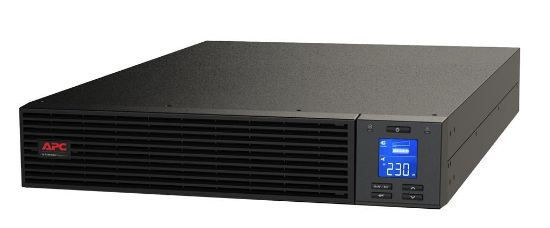

APC Easy UPS On-Line SRV RM 2KVA

The APC SRV2KRI Easy On-Line SRV RM 2000VA is High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions
Manufacturer: APC Schneider
SKU: APC SRV2KRI
Old price: 555.00 JOD
499.00 JOD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

APC SRV2KRI Easy On-Line SRV RM 2000VA Features

APC Easy UPS On-Line SRV RM 2000VA 230V
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions
Includes: CD with software, USB cable, User Manual

Automatic internal bypass

Supplies utility power to the connected loads in the event of a UPS power overload or fault.



  • Automatic restart of loads after UPS shutdown
    Automatically starts up the connected equipment upon the return of utility power.
  • ECO Mode
    Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
  • Input power factor correction
    Minimizes installation costs by enabling the use of smaller generators and cabling.
  • Intelligent battery management
    Maximizes battery performance, life, and reliability through intelligent, precision charging.
  • LCD display
    Alpha-Numeric Display which displays system parameters and alarms.
  • Serial connectivity
    Provides management of the UPS via a serial port.
  • USB connectivity
    Provides management of the UPS via a USB port (not available on all models).

Easy UPS On-Line Features & Benefits

Availability

Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

Manageability

SmartSlot
Customize UPS capabilities with management cards.
Network manageable
Provides remote power management of the UPS over the network.
Serial connectivity
Provides management of the UPS via a serial port.
LED Indicators
Provide easy-to-read status of the unit and utility power conditions.
LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.

Features

Allows the user to manage the UPS functions, schedule automatic shutdown and monitor the power grid occurrences through an interactive interface that ensures an easy and intuitive monitoring.
Management Software
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
USB connection
Use your PC to access additional power protection and management features for your UPS via a USB Port.

Features

Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
High efficiency
High efficiency rates that remain stable even at lower operating power levels
Wide input voltage range
Designed for harsh electrical environments to save battery life.
Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
Double conversion on-line topology
Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Management Software  Allows you to easily monitor your utility power and manage your UPS.

ECO Mode   Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection

SmartSlot    Customize UPS capabilities with management cards.


Serviceability

Predictive failure notification.  early-warning fault analysis ensuring proactive component replacement.

Automatic self-test   Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Audible alarms    Provides notification of changing utility power and UPS power conditions

Disconnected battery notification    Warns when a battery is not available to provide backup power.


Technical Specifications

Output

Output power capacity     1.6kWatts / 2.0kVA

Max Configurable Power (Watts)       1.6kWatts / 2.0kVA
Nominal Output Voltage     230V
Output Voltage Distortio    3%
Output Frequency (sync to mains)   50/60Hz +/- 3 Hz
Other Output Voltages     220, 240
Load Crest Factor       3 : 1
Topology     Double Conversion Online
Waveform type      Sine wave
Output Connections   (4) IEC 320 C13 (Battery Backup)

Input

Nominal Input Voltage    230V
Input frequenc      40 - 70 Hz
Input Connections   IEC-320 C14
Input voltage range for main operations   160 - 280V
Number of Power Cords    1

Batteries & Runtime

Battery type     Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time
Runtime
4.0 min (1600 Watts)
11.7 min (800 Watts)


Communications & Management

Control panel    Multi-function LCD status and control console

Audible Alarm    Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm


Surge Protection and Filtering

Surge energy rating     600Joules


Physical

Maximum Height
86MM, 8.6CM
Maximum Width
437MM, 43.7CM
Maximum Depth
462MM, 46.2CM
Net Weight
18.2KG
Shipping weight
20.7KG
Shipping Height
142MM, 14.2CM
Shipping Width
551MM, 55.1CM
Shipping Depth
599MM, 59.9CM

Environmental

Operating Temperature
0 - 40 °C
Operating Relative Humidity
0 - 95 (non-condensing) %
Operating Elevation
0-3000meters
Storage Temperature
-20 - 50 °C
Storage Relative Humidity
0 - 95 (non-condensing) %
Storage Elevation
0-14763.6meters

Conformance

Approvals
CE, IEC 62040-1-1, IEC 62040-1-2

Standard warranty 2 years repair or repla
