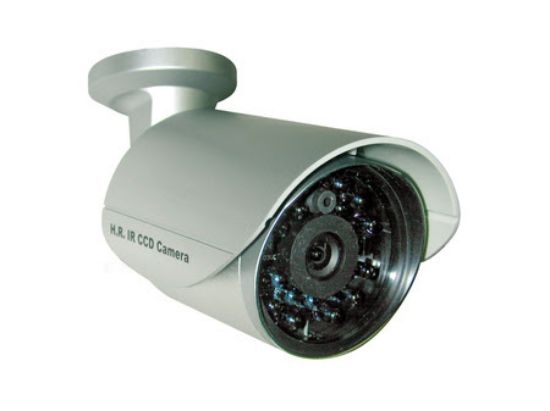

AVTECH KPC-138AD CCTV Camera

AVTECH KPC-138AD / KPC-138ZDP

Pick up Element :

1/3″ Color CCD image sensor

Number of Pixel :

512(H) x 492(V) / 512(H) x 582(V)

Resolution :

420TVL

Minimum illumination :

0.05 Lux / F2.0, 0Lux (IR ON)

S/N Ratio :

More than 48dB (AGC OFF)

Electronic Shutter :

1/60 (1/50) to 1/100,000 sec

Lens :

f3.6mm / F2.0

Lens Angle :

92.6°

IRIS Mode :

AES

Gain Control :

Auto

White Balance :

ATW

Video Output :

1.0Vp-p composite, 75O

Power Source (±10%) :

DC12V

Current Consumption (±10%) :

70mA (IR OFF), 220mA (IR ON)

Dimensions (mm) :

140.19(L) x 55.2(W) x 79.58(H)

IR LED :

21 units

IR Effective Range :

Up to 15 meters

IP Rating :

IP67
