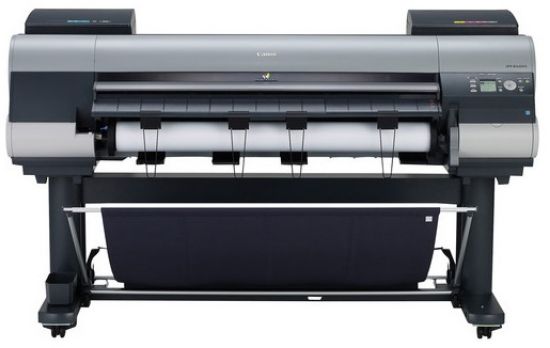

Canon image PROGRAF iPF8400 iPF8400S Plotter

Canon's LUCIA EX 12-Color set is designed for dramatic photographic expression and detailed color reproduction for exacting proofing applications.
Manufacturer: Canon
Availability: Out of stock
Old price: 5678.00 JOD
5555.00 JOD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options



Overview

Built for ultra high quality imaging and exceptional performance, the imagePROGRAF iPF8400 44" large format printer is equipped with an array of professional features. An incredibly large color spectrum is produced by the 12-Color LUCIA EX pigment ink set, which also provides better scratch resistance and smoother gradations. The new Multi-sensor included with this printer provides improved color density detection and allows for a full calibration to be completed within 15 minutes, with the ability to use non-Canon branded media. A new Color Calibration Management System allows for color calibration targets to be created using the iPF6450 with optional spectrophotometer and shared across all new iPFX400 12-color printers, and the included software allows for all printers on the network to be monitored from one central location. In highest print mode, the order of ink application and layering is optimized to maintain the highest print quality with fewer passes, making this mode twice as fast compared to previous models. The iPF8400 is also equipped with a large 250GB hard drive, geared to increase productivity in high volume printing and streamlined workflows, while allowing for faster processing of large files as well as the ability to reprint jobs directly from the printer.



To expand printing options and capabilities, the iPF8400 printer comes bundled with a Print Plug-in for Adobe Photoshop, Digital Photo Professional, and Microsoft Office. The enhanced Print Plug-in for Adobe Photoshop includes a new Adjustment Pattern Setting which allows for multiples of an image to be printed at once with different color values implemented and displayed. Gallery wraps for canvas prints can now be created using the new Gallery Wrap Feature. To improve versatility, the iPF8400 has a media configuration tool which allows customers to not only utilize existing Canon-branded media, but also with third party media. By combining Canon's technological achievements, the imagePROGRAF iPF8400 achieves consistently breathtaking, durable and long lasting prints.

Specifications

Main Unit Specs

Printer Type12-Color 44-inch Printer
Number of NozzlesTotal: 30,720
All Colors: 2,560 nozzles each
Nozzle Pitch1,200 dpi
Nozzle Recovery SystemNon-firing nozzle detection and compensation
Print Resolution (Up to)2,400 x 1,200 dpi (Max)
OS CompatibilityWindows® (XP/Vista 32/64bit/Windows 7 32/64bit)
Macintosh® (OSX)
Standard InterfacesUSB 2.0 High-Speed
10/100/1000 Base-T/TX
Ink Droplet Size4 picoliter
Ink Capacity330ml per color2 (Optional 700ml)
Ink Droplet SizeLUCIA EX Ink (Pigment based)
Color SetCyan, Photo Cyan, Magenta, Photo Magenta, Yellow, Black, Matte Black, Red, Green. Blue, Gray, Photo Gray
Buffer Ram384 MB
Hard Drive250 GB
Media WidthCut Sheet: 8" - 44"

Roll: 10" - 44"
Media ThicknessFront Loading Manual Feed: 0.07 - 0.8mm (2.8 - 31.4mil)

Roll: 0.07 - 0.8mm (2.8 - 31.4mil)
Maximum Roll Print Length59 Feet (18 meters)2
Maximum Media Roll Diameter5.9" (150mm)
Borderless Printing Width515mm (JIS B2), 1,030mm (JIS B0), 594mm (ISO A1), 841mm (ISO A0), 10", 14", 16", 24", 36", 42", 44"
Paper Feed MethodRoll Feed: One Roll, front output

Front Loading Manual Feed: One sheet, front output
LanguagesGARO (Canon Proprietary)
Noise Level ApproxOperation: 50 dB (A) or less

Acoustic Power: Approx. 6.8 Bels or less
Physical Dimensions45" (H) x 74.5" (W) x 38.4" (D)
WeightApproximately 316 lbs. with stand
Power SourceAC-100-240V (50-60Hz)
Power ConsumptionMaximum: 190W or less

Standby: 6W or less

Power Off: .5W or less (Compliant with Executive Order)
Operating EnvironmentTemperature: 59°-86° F (15°-30° C)

Relative Humidity - 10-80% (No Condensation)
User-replaceable itemsPrint Head (PF-05)

Maintenance Cartridge (MC-08)

Durable Rotary Media Cutter (CT-06)

Ink Tanks (PFI-306, PFI-706)
Software IncludedCanon Printer Driver, Print Plug-in for Adobe Photoshop. Print Plug-in for Digital Photo Professional, Printer Driver Extra Kit (Free Layout, Color imageRUNNER Enlargement Copy, Advanced Preview), Print Plug-in for Microsoft® Word/Excel/PowerPoint (PC only), Accounting Manager, Gallery Wrap Feature
