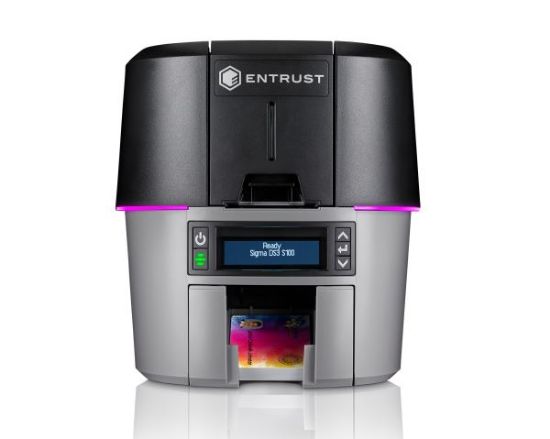

Entrust Sigma DS3 Duplex

the next generation of durability in direct-to-card printing

The Entrust Sigma DS3 card printer is the new successor of the popular and successful Datacard SD360 and the Datacard CD800. It is the most powerful card printer in the DS series and can be expanded with numerous encoders and options. With its more reliable technology and excellent print resolution, the Entrust Sigma DS3 card printer is ideal for a wide range of applications. In the duplex variant, the Sigma DS3 already has a flipper module built in. Thanks to the latest technologies, your new Sigma DS3 card printer is future-proof and ideally equipped for the challenges ahead.

Technology: The new TrueMatch printing technology ensures vivid, brilliant and crisp prints with the Entrust Sigma DS3. The Entrust Sigma DS3 printer reliably produces high-quality images by mimicking the RGB colour space. Optionally, the card printer can be equipped with WiFi, which offers even greater flexibility. Thanks to the new TruePick card technology, card jams are virtually eliminated, which prevents unnecessary misprints. The Sigma DS3 is one of the fastest card printers in its class. As with the two smaller models, the Sigma DS3 can also be used via the cloud.

Security: With the Entrust Sigma DS3 you can customise and print watermarks with the YMCKL-KT ribbon. Entrust also offers a magnetic stripe encoder as well as a smart card and RFID card encoder as options for the Sigma DS3. It is also possible to combine the Sigma DS3 with a laminator. Encrypted data transfer. Unmatched Security Ensure data is safe from intruders with encryption technology, TPM Module, and Secure Boot

Operation: The Sigma DS3 printer is quick and easy to learn how to use. The LCD display of the printer informs about the most important parameters, e.g. when only a few prints are possible. The browser-based printer control makes it easy to set and change printer settings. Plus, it's faster, more reliable and intuitive to use. Save valuable working time and increase your productivity with one of the fastest and most advanced printers in its category.Printing cards has never been easier with flexibility to issue IDs with software in the cloud or on-premis

Entrust DS3 ID Card Printer Standard Features

Dye-sublimation / resin thermal transfer
Rewritable technology
Print Capabilities

Single or Dual-sided
Print Resolution 300 dots per inch (dpi) (300 X 600, 300 X 1200)
Monochrome Printing    Up to 1100 cards per hour single-sided
Print, lamination, and tactile Speed

Full color printing
Up to 210 cards per hour front side YMCK ribbon with front side lamination
Up to 185 cards per hour front side YMCK-K ribbon, back side K with front side lamination
Up to 195 cards per hour (one side print and lamination with tactile) YMCK
Up to 160 cards per hour (two sided printer and lamination with tactile) YMCK K
Card Capacity

Input hopper - up to 125 cards
Output hopper - up to 25 cards (up to 100 optional)
Reject hopper - up to 10 cards
Card Sizes

Card input size:
Thickness - 0.010 inches to 0.040 inches (0.25mm - 1.016mm)
Dimension - ID-1, CR-79, CR-80
Operating Environment

Temperature: 60°F to 95°F (15°C to 35°C)
Humidity: 20-80 % RH - non condensing
Physical Dimensions : L 23.8 in x W 10.6 in x H 20.4 in / 60.4 cm x 27 cm x 51.9 cm
Weight : 30 lbs (13.62 kg); with options will vary
Connectivity : USB & Ethernet
Web browser support for Instant ID as a Service:

Chrome - Preferred  / Edge/Internet Explorer / Safari
Operating system support for printer driver

Windows 10 versions, 32- and 64-bit
Windows 8.1, 32- or 64-bit
Windows Server 2019
Windows Server 2016
Windows Server 2012, R2, 64-bit

Optional Features and Supplies
Magnetic Stripe Encoding

ISO 7811 three-track support (high- and low- coercivity)
JIS Type II Single-track option
Multi-Hopper

Six-compartment multi-hopper (Six 125-card hoppers, 750-card total capacity)
WiFi : Wi-Fi types: 802.11g/n
Authentication modes: None, WPA2 Personal
Dual-band 2.4GHz & 5GHz Smart Card Encoding

Single Wire or Loosely coupled:
Contact smart card encoding: ISO 7816 T=0 (T=1),
Class A 5V (3V and 1.8V)
Contactless smart card encoding: ISO 14443 – A (B),
ISO 15693, MiFare Series, DESFire Series,
HID IClass Series, HID Prox (125 KHZ)
Color Ribbons

Prefilled print ribbon cassettes:
YMCKT (500)
YMCKT-KT (350)
KTT (750)
ST-KT (500)
GT-KT (500)
Refill print ribbon kits:
YMCKT (250/50)
ymcKT (650)
YMCKT-KT (350)
ymcKT-KT (435)
KT (1000)
KTT (750)
YMCKF-KT (300)
YMCKL-KT (300)
YMCK** (500)
YMCK-K** (500)

Warranty:  2 years Carry-in Warranty in Jordan Authorized Service Centers .Warranty Extension optional. Preventive maintenance is not included in manufacturer warranty nor onsite warranty; these could be available in a separate offer.
