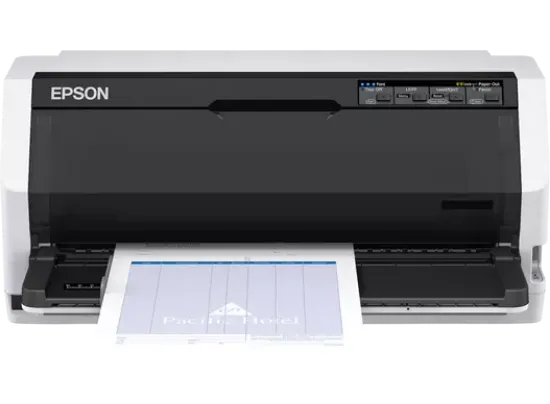

Epson LQ-690II Dot Matrix Printer

24-pin dot matrix printer High speed Impressive print speed of 487 cps (10cpi) with 1+6 copies Quality The 106 column capacity with 24 pins means greater quality Reliable Combined power of print head life and MTBF of 20,000 hours Modern design The black and white casing blends comfortably into any work environment
Manufacturer: Epson
SKU: C11CJ82402
Old price: 480.00 JOD
425.00 JOD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
The product features and specifications are subject to change without prior notice

Technology

Printing Method
Impact dot matrix
Number of Pins
24 pins
Number of columns
106 columns
Pins
24 Needles

Print

Printing Speed
HighSpeed-Draft: 10 cpi: 487 chars/s, 12 cpi: 529 chars/s, Draft: 10 cpi: 366 chars/s, 12 cpi: 396 chars/s, LQ: 10 cpi: 121 chars/s, 12 cpi: 132 chars/s
Barcodes
Coda bar (NW-7), Code 128, Code 39, EAN-13, EAN-8, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, POSTNET, UPC-A, UPC-E
Carbon Copies
6 plus one original
Character Tables
PC437, PC708, PC720, PC850, PC858, PC864, PCAR864, ISO-8859-15, Roman 8, Italic
Printing Resolution
360 x 180 DPI

Connectivity

Interfaces
USB 2.0, Bidirectional parallel

Paper / Media Handling

Document Feed
Single sheet front, Continuous media rear, Paper output front
Paper Formats
Sheet Paper (single- and multi-layer), Continuous Paper (single- and multi-layer), Labels (single- and multi-layer), Roll Paper, Envelopes, Cardboard
Paper Thickness Continuous Paper
0,065 mm - 0,49 mm
Paper Thickness Label Base Sheet
0,16 mm - 0,19 mm
Paper Thickness Label Total Sheet
0,16 mm - 0,19 mm
Paper Thickness Multi Part
0,12 mm - 0,49 mm
Paper Thickness Single Sheet
0,065 mm - 0,15 mm

General

Power consumption
38 Watt, 3 Watt (standby)
Product dimensions
480‎ x 301 x 211 mm (Width x Depth x Height)
Product weight
6,8 kg
Supported Temperature
Operation 5° C - 35° C
Supported Humidity
Operation 10% - 80%
Compatible Operating Systems
Windows 10, Windows 11, Windows 2000, Windows 7, Windows 8, Windows 98, Windows Vista, Windows XP, Windows XP SP3 or later (32-bit), Windows Server 2003 SP2 or later
Included Software
Epson Status Monitor
Mean Time Between Failures
20.000 hours
Print Head Life
400 Million Strokes/Wire
Noise
Operation:59 dB (A)- Standby:54 dB (A)
Fonts
Bitmap font EPSON Courier (10 CPI, 12 CPI, 15 CPI), Bitmap font EPSON Draft (10 CPI, 12 CPI, 15 CPI), Bitmap font EPSON OCR-B (10 CPI), Bitmap font EPSON Orator (10 CPI), Bitmap font EPSON Orator-S (10 CPI), Bitmap font EPSON Prestige (10 CPI, 12 CPI), Bitmap font EPSON Roman (10 CPI, 12 CPI, 15 CPI, Proportional), Bitmap font EPSON Sans Serif (10 CPI, 12 CPI, 15 CPI, Proportional), Bitmap font EPSON Script (10 CPI), Bitmap font EPSON Script C (Proportional), Scalable font EPSON Roman, Scalable font EPSON Roman T, Scalable font EPSON Sans Serif, Scalable font EPSON Sans Serif H
Memory
128 kB Included
Ribbon Yield
10000000 characters Black Draft

Other Features

Emulations
ESC/P2, IBM PPDS
Product tags
Related products
Epson LQ-590 Dot Matrix Printer

Epson LQ-590 Dot Matrix Printer

Dot Matrix Printers, Impact dot matrix, 80 columns, 24 Needles, Ethernet interface (100 Base-TX / 10 Base-T) (optional), USB 2.0 Type B, Parallel, Type B interface, Bidirectional parallel, 20,000 Hours, 400 Million Stroke
500.00 JOD 479.00 JOD
Epson LQ-2190 Dot Matrix Printer

Epson LQ-2190 Dot Matrix Printer

796.00 JOD 750.00 JOD
Picture of Epson LQ-350 Dot Matrix Printer

Epson LQ-350 Dot Matrix Printer

High reliability MTBF of 10,000 operating hours Power-efficient 1.3W on standby, 22W powered on Economical Ribbon yield of 2.5m characters Easy integration Parallel, Serial and USB interfaces Compact design Fits neatly onto desks
195.00 JOD

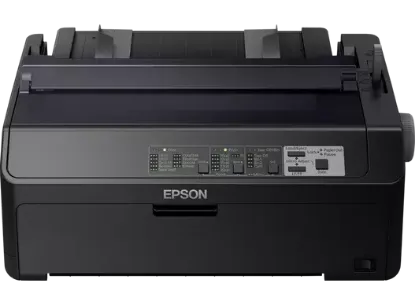

Picture of Epson LQ-590II DOT MATRIX PRINTERS
