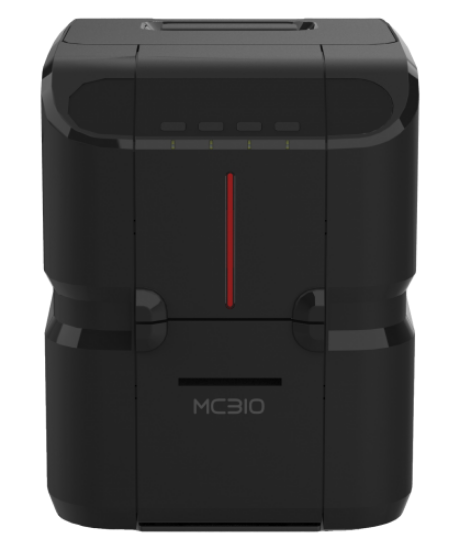

Matica MC310 Single Sided ID Card Printer

Matica MC310 direct-to-card printing designed to fit any card issuance environment

Launched in January 2020 replacing Matica Espresso II Desktop Card Printer, the Matica MC310 direct-to-card printer offers a superior print quality and a complete line of encoding, lamination and communication options. Its versatility provides a solution to all vertical markets which need to run card issuance programs that require reliable and consistent high quality printing, converting the MC310 into the most flexible and reliable card printer platform in the market.
What can the MC310 achieve?
This printer delivers reliable, easy-to-use high-performance color card printing, which is what you need to run a successful card issuance program. This also includes notably fast output of over 180 cards per hour when printing single side and up to 850 cph when printing in monochrome. The optional in-line magnetic strip encoder and dual interface encoders for contact/contactless smart cards, maximizes its functionality for a broader set of application uses, such as access control, time and attendance, payment services and many more.
The MC310 is accompanied by a comprehensive ribbon program to cover all issuance needs in all vertical markets, including the new Matica YMCScKO ribbon to increase the number of visual security elements (VSE) on the card for security applications.

A superb choice solution for all vertical markets.

MC310 direct-to-card printer additional security option
If you are looking for more durable and secure cards, the use of the optional, easy to install, in-line MC-L2 lamination module in combination with the MC310 allows you to issue cards which last longer and have an additional level of security against counterfeit.

Aside from its output, the MC310 is easy-to-use and reliable, making it a perfect fit for employees who work in card issuance and want a quick, reliable way to issue cards on-demand or batch processes.
Matica MC310 TECHNICAL SPECIFICATIONS
Print method Dye-sublimation direct-to-card
Print Resolution 300 x 300 dpi
Print area Edge-to-edge (CR-80 cards)
Print mode Single Side (Optional Dual side)
Print speed 180 Card per hour (YMCKO single side, batch)
 850 Card per hour (monochrome printing)
Card Thickness 0.25 mm - 1.25 mm (10 mil - 50 mil)
Card Types CR-80 PVC, PVC-C, Re-writable cards
Input Hopper Capacity 100 cards (0.76 mm - 30 mil thickness)
Output Hopper Capacity 30 cards (front) / 80 cards (rear)
Exception feeding Included
User Interface Two-lines x 16 chars LCD display
 4 x LED status indicator
Encoding Options Magnetic stripe encoder ISO7811
 Dual interface smart card encoder
Other Options Matica MC-L2 laminator
Communications Interface USB 2.0 | Ethernet 10BaseT, 100BaseT
 WiFi 802.11 a/b/g (optional)
chromXpert® Ribbon Program YMCKO (250 prints)
 YMCKO-K (200 prints)
 YMCKO-KO (200 prints)
 ½ YMC-KO (400 prints)
 ½ YMCKO-KO (250 prints)
 YMCScKO (200 prints)
 KO (800 prints)
 Monochrome (2000 prints)
 (K, Silver, Gold, White, Red, Green, Blue)
 Scratch-o¬ (2000 prints)

Smart Ribbon Protection Ribbon automatic recognition
 RFID (13.56 MHz) TAG
 Two-level encoding protection
Memory 128 Mbytes
Safety Support for Kensington® security lock
Operating Systems Windows© driver (32/64 bits)
 XP, SP3, Vista, W7, W8, W10
Integration Tools SDK available for system integrators
 EDIsecure® middleware
Printer Dimensions (H x W x D) 255,6 x 202 x 405,4 mm
 (10.6” x 7.9” x 15.9”)
Weight 10 kg. (22 lbs)
Power Supply 220-240V/110-115V, 50-60 Hz
Operating Environment Temperature: 15ºC - 40ºC (59ºF - 104ºF)
 Humidity: 20% - 65% (non-condensing)
Storage Conditions Temperature: -5ºC to -70ºC (23ºF - 158ºF)
 Humidity: 20% - 70% (non-condensing)
Quality Standards - RoHs
 - CE, FCC, CQC, UL, WEEE
 - Proposition 65 (California, USA)
 - Standby mode and reduced power
 Consumption
 - Sound pressure less than 48 dB (A) in
 Operation mode (ISO 7779)
Warranty:  3 years Carry-in Warranty in Jordan Authorized Service Center. Warranty Extension optional. Preventive maintenance is not included in manufacturer warranty nor onsite warranty; these could be available in a separate offer.
