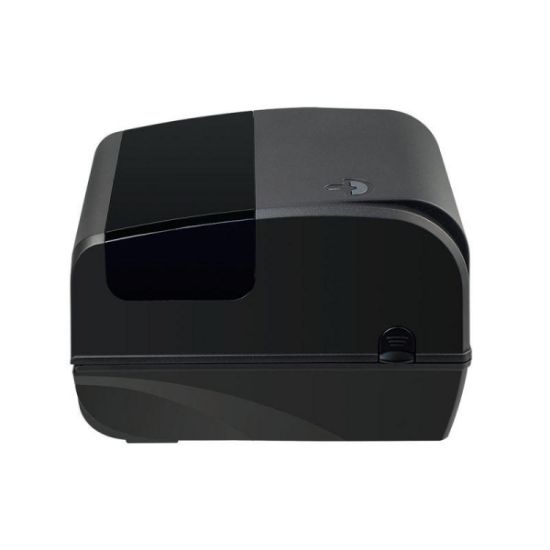

Xprinter XP-TT426B Thermal Transfer & Direct Thermal Printer

USB + LAN Lable Printer; Dual-motor gear driver design; Head-up sensor and platen replacement; 300 meters ribbon capacity; 200 MHz 32-bit processor with
Manufacturer: Xprinter
SKU: XP-TT426B
Old price: 125.00 JOD
110.00 JOD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Product Overview
● Dual-motor gear driver design● Head-up sensor and platen replacement
● 300 meters ribbon capacity● 200 MHz 32-bit processor with 16MB SDRAM,16MB flash memory
● Free bundled labeling software and windows drivers.




Specifications
Printer Specifications
Resolution203DPI

Print Method

Thermal Transfer / Direct Thermal
Memory8 MB RAM / 8 MB Flash
Max.Print Width4.09 in./ 104 mm
Max.Print SpeedUp to 5 ips (127 mm/s)
Media SensorsMovable Black Mark Sensor / Movable Gap Sensor
EmulationTSPL, ZPL, EPL, DPL
InterfaceUSB, USB+Serial, USB+Ethernet, USB+Serial+Ethernet, Optional Wireless Connectivity: Bluetooth / Wi-Fi
OthersStandard RTC, Standard SD Card Slot

Media and Ribbon Characteristics

Media Length

0.39 in.~70 in.(10 mm ~ 1778 mm)

Media Width

1 in. ~ 4.6 in. (25.4 mm ~ 118 mm)

Media Roll Size

5 in. / 127 mm Outer Diameter, Core Inner Diameter: 1 in. (25.4 mm)

Media Thickness

0.0023 in. (0.06 mm) Min.; 0.01 in. (0.254 mm) Max.

Media Types

Continuous, Gap, Black mark, Fan~fold, Perforated Media
Ribbon Outside Diameter2.63 in. / 67 mm
Max. Ribbon Length300 Meters (984 ft.)
Ribbon Width1 in. ~ 4.3 in. (25.4 mm ~ 110 mm)
Ribbon Core I.D.1 in. / 25.4 mm

Environment Condition

Operating Temp.

5~40℃(41~104℉)

Storage Temp.

-40~60℃(-40~140℉)

Operating Humidity

25 ~ 85% Non-Condensing

Storage Humidity

10 ~ 90% Non-Condensing

Fonts/Graphics/Symbologies

1D Bar Codes

Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar,Interleaved 2 of 5, EAN-8,EAN-13,EAN-128, UPC-A, UPC-E,EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code 11

2D Bar Codes

PDF-417, Maxicode, DataMatrix, QR code, Aztec

Fonts and Graphics

Font 0 ~ Font 8

Software

Driver

Windows /Linux /Mac / Android / Chrome OS

SDK

Windows/Linux / Android /iOS

Software

Bartender UltraLite / Mobile Label Design App

Accessories

Standard Accessories

Power Adapter,  Power Cord, USB Cable, User Manual, CD ,  Label spindle, Fixing tab, Fixing tab, Ribbon spindle, Ribbon for test, Ribbon paper core, label roll for test

Factory Installed Options

Bluetooth Module, Wi-Fi Module, Peel-off Module, Cutter Module

User Options

8" External Paper Roll Holder

Product Warranty

Printhead life

The earlier of 30 km usage or 1 year

Platen roller life

The earlier of 30 km usage or 1 year

Printer Warranty

1 Year

Physical Characteristics

Dimension

299 mm x 235 mm x 198.3 mm (D x W x H)

Weight

2.55 Kg
